The Hard Ones
Three cars a dealer wanted to give up on.
Every one of these came in with an estimate already written by somebody else. In all three, the transmission was fine.
We're not telling these stories to run down dealerships. We're telling them because this is what an hour of diagnosis is actually for — and because if your car is doing something similar right now, you should know that “replace the transmission” is not always the answer.

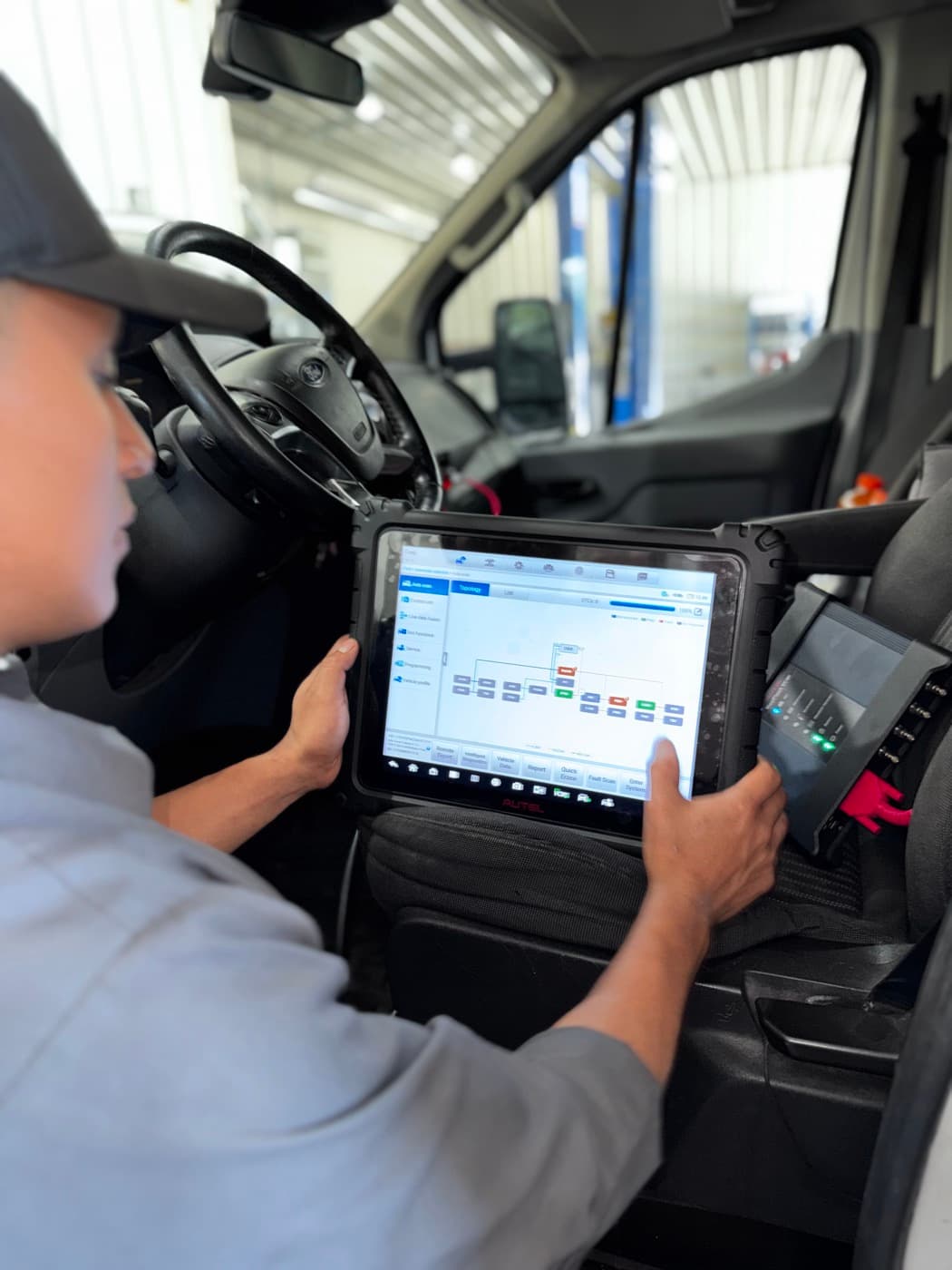

A scan tool doesn't just read a code — it can show which modules are talking to each other, and which one has gone quiet.
The $5,000 sensor
A dealer wanted $5,000 for a new transmission. It needed a $325 sensor.
The truck: A 2006 Ford F-150 with the 5.4L V8, stuck in first gear all the way up the road.
What he was told: The dealer diagnosed a failed transmission and quoted $5,000 to replace it.
What it actually was: A throttle position sensor stuck at closed throttle.
That sensor tells the truck's computer how far open the throttle is, and the computer decides when to upshift largely from that. On this truck the sensor's voltage never moved — it reported a closed throttle no matter where the driver's foot was. So the computer never saw a reason to shift, and never sent the command. A transmission that's never told to shift will sit in first gear all day, which looks exactly like a transmission that can't shift.
Nothing inside it was worn. Nothing inside it was broken. It just never got told.
What it cost: $325, sensor and labor.
The wire nobody looked for
Another shop already replaced the computer. It didn't fix the Jeep. The real problem was a wire, not the transmission.
The Jeep: A 2016 Jeep Patriot.
What had already happened: Another shop had already replaced the transmission control module — the computer that runs the transmission. It didn't fix anything. With a new TCM in the car and the same problem still there, their next answer was to replace the transmission itself. Quoted at $6,000.
What we found: The new TCM wasn't the problem, because it couldn't talk to the car at all — no communication with it, full stop. That's different from a module that's simply broken. A broken module still tries to respond and fails. One that can't be reached might be perfectly fine and just cut off from everything else.
We checked the harness under the wheel well liner and found the fault there — damage to the wiring itself, not to either computer. The first shop had replaced the one part that was never actually broken.
What it cost: $525 — the two-hour diagnostic to actually trace the fault, plus the repair. Not $6,000. The car did not need a second TCM, and it did not need a transmission.
The $8,000 ground
Quoted $8,000 for a transmission. It was a $325 ground wire.
The SUV: A 2017 Cadillac Escalade that wouldn't shift.
What he was told: Replace the transmission. $8,000.
What it actually was: A bad ground on the transmission control module (the TCM) — bad enough that it had lost communication with the engine computer (the PCM) entirely.
The two computers that run the transmission couldn't hear each other. From a scan tool, a module gone silent looks exactly like a module that's failed — but this one hadn't failed. Its ground connection had. And a ground connection isn't the transmission. It's a wire and a bolt.
What it cost: $325. Not $8,000. He kept his transmission.
If your car is doing something like this
Bring it in before you authorize a replacement. An hour of diagnosis costs $150. Every car on this page was quoted a transmission replacement, and every one of them went home without needing one — for $325, $525, and $325.
